Pin Vinyl-Insulated Terminal Supplier

Heure de publication: 2019-10-11 12:00 Auteur: Editeur du site Visite: 861

Company Profile

YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.

Our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.

TEL:+008613757750709

FAX:86-577-62766133

product description

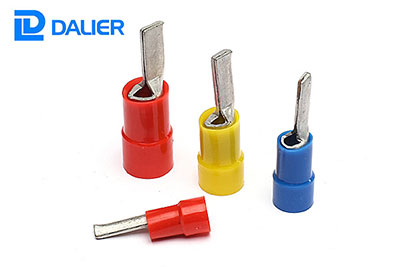

Special Pin Vinyl-Insulated Terminal

Pre-Insulated Pin Terminal manufactured in copper with tin coating by galvanic electroplating process.

Outline:

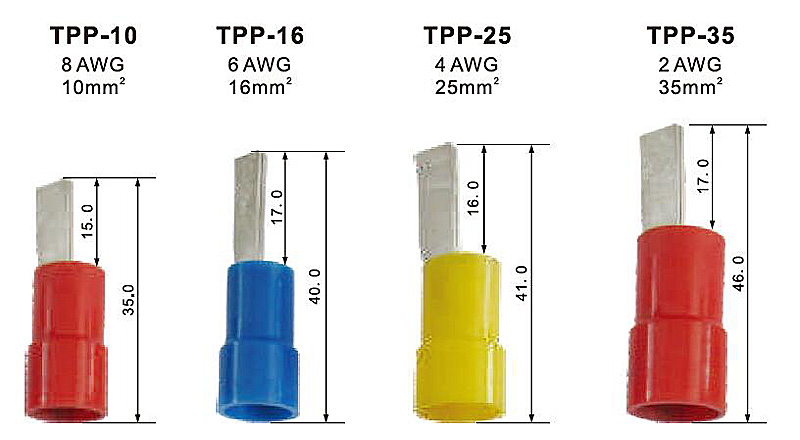

Pin Vinyl-Insulated Terminal Supplier_Pin Vinyl-Insulated Terminal Drawing

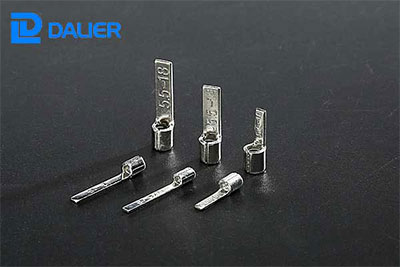

Non-Insulated Terminals

Cable size: 0.5~1.5mm²(A.W.G.22~16)
Max current: Imax=19A
Material: purple copper
Thickness: 0.75mm

Technical Specification:

Item No	Dimension					color
	B	L	F	H	DΦ
DBN 1.25 - 10	2.3	20	10	10	4.3	red
DBN 1.25 - 11	3	21	11
DBN 1.25 - 14	3	24	14
DBN 1.25 - 18	2.3	28	18

Outline:

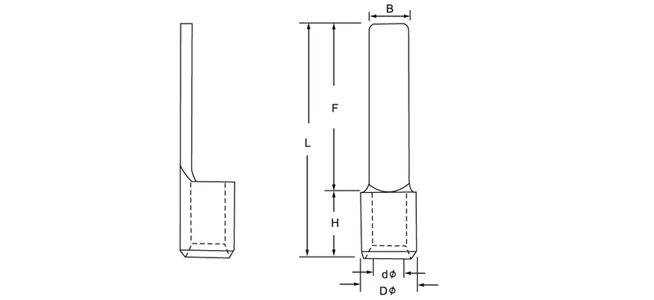

Pin Vinyl-Insulated Terminal Supplier_Non-insulated blade terminal drawing
