female insulating joint Nylon supplier
Heure de publication: Auteur: Editeur du site Visite: 809
Company Profile
YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.
TEL:+008613757750709
FAX:86-577-62766133
product description

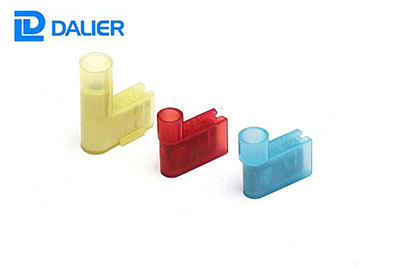

Flag female insulating joint Nylon
- Max current: 22-18 A.W.G:10A 16-14 A.W.G:15A 12-10 A.W.G:24A
- Max voltage: 105°C 600V
- Material: brass
- Insulating material: nylon
- Thickness: 0.4mm
Technical Specification:
| No. | Item No. | Connecting spec. | Dimension(mm) | Cable size | |||
| W | F | L | D | (mm²) | |||
| 1 | FLDNY1.25-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 22~18 A.W.G. |
| 0.5~1.5mm² | |||||||
| 2 | FLDNY2-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 16~14 A.W.G. |
| 1.5~2.5mm² | |||||||
| 3 | FLDNY5.5-250 | 0.8×6.35 | 6.6 | 7.6 | 16 | 1.7 | 12~10 A.W.G. |
| 4~6mm² |
Outline:

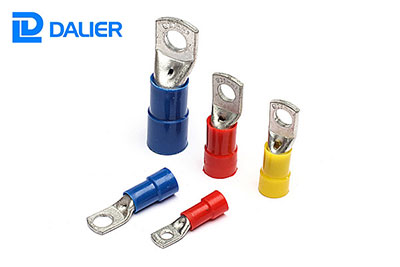

Special Tubular Vinyl-Insulated Terminal
Technical Specification:
| CAT.# | ΦHOLE | CONDUCTOR SIZE | |
| mm | AWG | mm2 | |
| TPT-10 | 4-5-6-8 | 8 | 10 |
| TPT-16 | 38511 | 6 | 16 |
| TPT-25 | 5-6-8-10 | 4 | 25 |
| TPT-35 | 6-8-10-12 | 2 | 35 |
| TPT-50 | 6-8-10-11-12 | 1/0 | 50 |
| TPT-70 | 6-8-10-11-12 | 2/0 | 70 |
