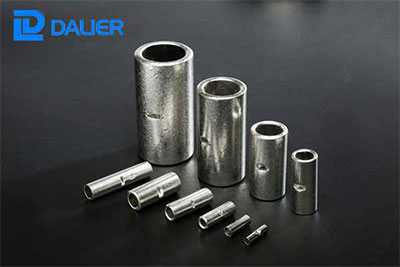

Non-insulated butt splice terminal BN
Technical Specification:
| Item No. | Conductor Section | Dimension(mm) | |||
| A.W.G | mm² | DΦ | dΦ | L | |
| BN1.25 | 22-16 | 0.5-1.5 | 3.3 | 1.7 | 15 |
| BN2 | 16-14 | 1.5-2.5 | 4 | 2.3 | 15 |
| BN3.5 | 14-12 | 2.5-4 | 5 | 3 | 15 |
| BN5.5 | 12-10 | 4-6 | 5.5 | 3.4 | 15 |
| BN8 | #8 | 10 | 7.1 | 4.5 | 21 |
| BN14 | #6 | 16 | 9 | 5.8 | 26 |
| BN22 | #4 | 25 | 11.4 | 7.7 | 29 |
| BN38 | #2 | 35 | 13.3 | 9.4 | 32 |
| BN60 | 1/0 | 50 | 15.4 | 11.4 | 36 |
| BN70 | 2/0 | 70 | 17.5 | 13.3 | 37 |
| BN80 | 3/0 | 95 | 19.4 | 14.5 | 38 |
| BN100 | 4/0 | 120 | 22 | 16.4 | 38 |
| BN150 | 250-300MCM | 150 | 26.5 | 19.5 | 54 |
| BN180 | 300-350MCM | 185 | 28.5 | 21 | 57 |
| BN200 | 400MCM | 240 | 32.5 | 24 | 63 |
| BN325 | 500-600MCM | 300 | 37 | 28 | 72 |
Outline:

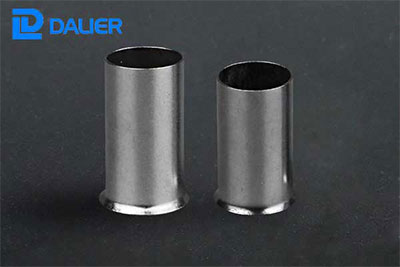

Non-insulated cord end terminal EN
Technical Specification:
| ITEM NO. | dimension(mm) | conductor section mm² | ||||
| L | DΦ | CΦ | W | A.W.G | mm2 | |
| EN 0506 | 6 | 1.3 | 1 | 1.7 | #22 | 0.5 |
| EN 0508 | 8 | |||||
| EN 0510 | 10 | |||||
| EN 0512 | 12 | |||||
| EN 7506 | 6 | 1.5 | 1.2 | 1.9 | #20 | 0.75 |
| EN 7508 | 8 | |||||
| EN 7510 | 10 | |||||
| EN 7512 | 12 | |||||
| EN 1006 | 6 | 1.7 | 1.4 | 2.2 | #18 | 1 |
| EN 1008 | 8 | |||||
| EN 1010 | 10 | |||||
| EN 1012 | 12 | |||||
| EN 1507 | 7 | 2 | 1.7 | 2.5 | #16 | 1.5 |
| EN 1508 | 8 | |||||
| EN 1510 | 10 | |||||
| EN 1512 | 12 | |||||
| EN 1518 | 18 | |||||
| EN 2507 | 7 | 2.6 | 2.2 | 3.3 | #14 | 2.5 |
| EN 2508 | 8 | |||||
| EN 2510 | 10 | |||||
| EN 2512 | 12 | |||||
| EN 2518 | 18 | |||||
| EN 4009 | 9 | 3.2 | 2.8 | 3.9 | #12 | 4 |
| EN 4012 | 12 | |||||
| EN 4018 | 18 | |||||
| EN 6010 | 10 | 3.9 | 3.5 | 4.8 | #10 | 6 |
| EN 6012 | 12 | |||||
| EN 6015 | 15 | |||||
| EN 6018 | 18 | |||||
| EN 10-12 | 12 | 4.8 | 4.5 | 5.8 | #7 | 10 |
| EN 10-15 | 15 | |||||
| EN 10-18 | 18 | |||||
| EN 16-12 | 12 | 6.2 | 5.8 | 7.2 | #8 | 16 |
| EN 16-15 | 15 | |||||
| EN 16-18 | 18 | |||||
| EN 25-16 | 16 | 7.9 | 7.5 | 9.1 | #4 | 25 |
| EN 25-22 | 22 | |||||
| EN 35-16 | 16 | 8.7 | 8.3 | 10.2 | #2 | 35 |
| EN 50-12 | 12 | |||||
| EN 50-18 | 18 | |||||
| EN 35-25 | 25 | |||||
| EN 50-20 | 20 | 10.9 | 10.3 | 12.4 | #1 | 50 |
| EN 50-22 | 22 | |||||
| EN 50-25 | 25 | |||||
| EN 50-30 | 30 |

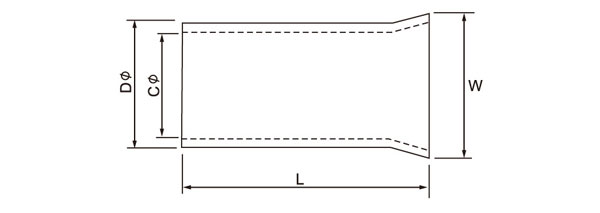

Outline:
