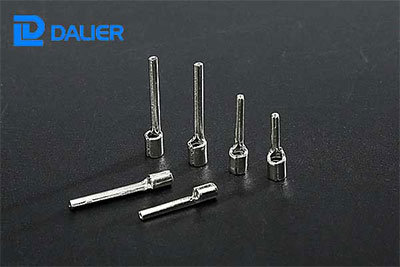

Non-insulated pin terminal PTN
- Cable size: 0.5~1.5mm²(A.W.G.22~16)
- Max current: Imax=19A
- Material: purple copper
- Thickness: 0.75mm
Technical Specification:
| Item No. | Dimension(mm) | ||||
| F | L | E | DΦ | dΦ | |
| PTN1.25-9 | 1.9 | 13.8 | 4.8 | 3.4 | 1.7 |
| PTN1.25-10 | 1.9 | 14.8 | |||
| PTN1.25-12 | 1.9 | 16.8 | |||
| PTN1.25-13 | 1.9 | 17.8 | |||
| PTN1.25-18 | 1.9 | 22.8 |

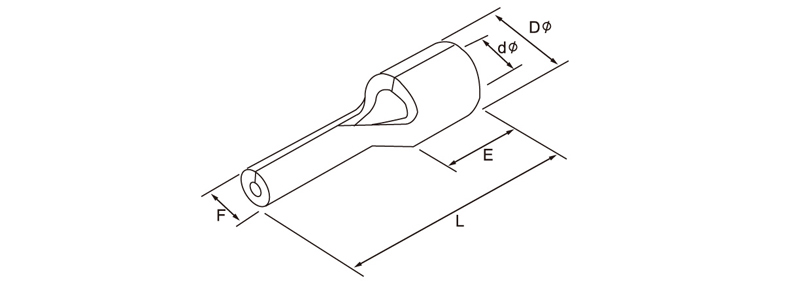

Outline:

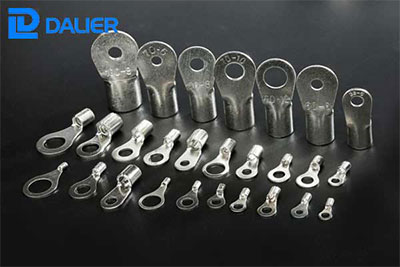

Non-insulated Ring terminal RNB
- Cable size: 0.5~1.5mm²(A.W.G.22-16)
- Max current: Imax=19A
- Material: purple copper
- Thickness: 0.7mm
Technical Specification:
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-3.5 | #6 | 3.7 | 8 | 15.8 | 7 | |||
| RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-4 | #8 | 4.3 | 8 | 15.8 | 7 | |||
| RNB1.25-5 | #10 | 5.3 | 8 | 15.8 | 7 | |||
| RNB1.25-6 | 43469 | 6.4 | 11.6 | 21.8 | 11.2 | |||
| RNB1.25-8 | 43601 | 8.4 | 11.6 | 21.8 | 11.2 | |||
| RNB1.25-10 | 43532 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB1.25-10 | 43467 | 13 | 19.2 | 31 | 16.5 |

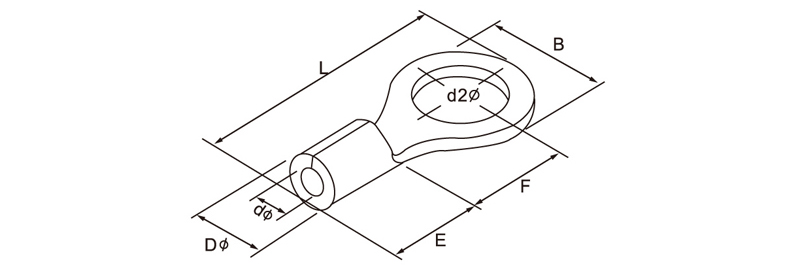

Outline:
