The copper terminal can be subdivided into 34 specific different models. This type of copper terminal is ...
PlusSectionneur FDD isolé au vinyle Taille de câble: 0,5 ~ 1,5 mm² (A.W.G.22 ~ 16), Courant max: Imax = 10A, Matériau: laiton. Taille du câble: 1,5 ~ 2,5 mm² (A.W.G.16 ~ 14), Courant max: Imax = 15A, Matériel: laiton
Paramètres du produit
Taille du câble: 0,5 ~ 1,5 mm² (A.W.G.22 ~ 16) Courant max: Imax = 10A Matériel: laiton

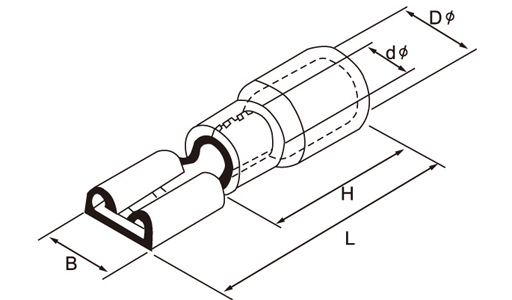

| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD1.25-110(5) | 0.5×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 19 | 10 | Red |
| FDD1.25-110(8) | 0.8×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(5) | 0.5×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(8) | 0.8×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-205 | 0.5×5.2 | 0.4 | 6.5 | 1.7 | 3.8 | 20 | 10 | |
| FDD1.25-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21 | 10 | |
Taille du câble: 1,5 ~ 2,5 mm² (A.W.G.16 ~ 14) Courant max: Imax = 15A Matériel: laiton
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD2-110(5) | 0.5×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 18.7 | 10.6 | Blue |
| FDD2-110(8) | 0.8×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 18.7 | ||
| FDD2-187(5) | 0.5×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 18.7 | ||
| FDD2-187(8) | 0.8×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 18.7 | ||
| FDD2-205 | 0.5×5.2 | 0.4 | 6.5 | 1.7 | 3.8 | 19.7 | ||
| FDD2-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21.4 | ||
| FDD2-312 | 0.8×8.0 | 0.4 | 8.9 | 1.7 | 3.8 | 24.1 | ||
Taille du câble: 4,0 ~ 6,0 mm² (A.W.G.12 ~ 10) Courant max: Imax = 24A Matériel: laiton
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD5.5-250 | 0.8×6.35 | 0.4 | 7.4 | 5.7 | 3.4 | 24.5 | 13 | Yellow |
| FDD5.5-375 | 1.2×9.4 | 0.5 | 10.9 | 5.7 | 3.4 | 29.3 | 13.5 | |
