The copper terminal can be subdivided into 34 specific different models. This type of copper terminal is ...
PlusEmbouts isolés à deux extrémités de cordon. Fabriqués en cuivre électrolytique pur. Cosses de cuivre et bornes de câble de 0,5 à 16 Mm2 avec différentes tailles de trous de goujon selon les besoins.
Paramètres du produit
Tension max: 105 ° C Ui = 300V Matériel: cuivre violet Matériau isolant: Nylon

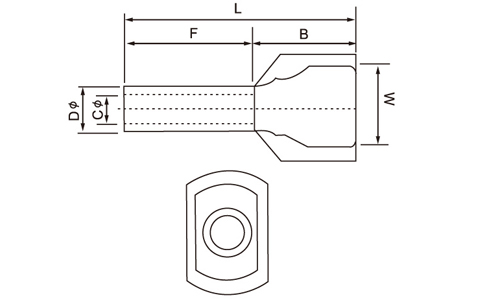

| Item No. | Conductor | Dimension | color of Insulating | ||||||
| (mm²) | F(mm) | L(mm) | W(mm) | B(mm) | D (mm) | C (mm) | German | French | |
| TE0508 | 2×0.5 | 8.0 | 14.0 | 5.0 | 6.0 | 1.8 | 1.5 | White | White |
| TE7508 | 2×0.75 | 8.0 | 14.5 | 5.5 | 6.5 | 2.1 | 1.8 | Blue | Gray |
| TE7510 | 2×0.75 | 10.0 | 16.5 | 5.5 | 6.5 | 2.1 | 1.8 | ||
| TE1008 | 2×1.0 | 8.0 | 14.9 | 5.5 | 6.9 | 2.3 | 2.0 | Red | Red |
| TE1010 | 2×1.0 | 10.0 | 16.9 | 5.5 | 6.9 | 2.3 | 2.0 | ||
| TE1508 | 2×1.5 | 8.0 | 16.7 | 6.7 | 8.7 | 2.6 | 2.3 | Black | Blue |
| TE1512 | 2×1.5 | 12.0 | 20.7 | 6.7 | 8.7 | 2.6 | 2.3 | ||
| TE2510 | 2×2.5 | 10.0 | 19.8 | 8.0 | 9.8 | 3.3 | 2.9 | Gray | Blue |
| TE2513 | 2×2.5 | 13.0 | 22.8 | 8.0 | 9.8 | 3.3 | 2.9 | ||
| TE4012 | 2×4.0 | 12.0 | 21.2 | 8.8 | 9.2 | 4.2 | 3.8 | Orange | Gray |
| TE6014 | 2×6.0 | 14.0 | 23.5 | 9.5 | 9.5 | 5.3 | 4.9 | Green | Yellow |
| TE10-14 | 2×10.0 | 14.0 | 26.5 | 12.6 | 12.5 | 6.9 | 6.5 | Brown | Red |
| TE16-14 | 2×16.0 | 14.0 | 30.0 | 19.0 | 16.0 | 8.7 | 8.3 | Ivory | Blue |
