The copper terminal can be subdivided into 34 specific different models. This type of copper terminal is ...

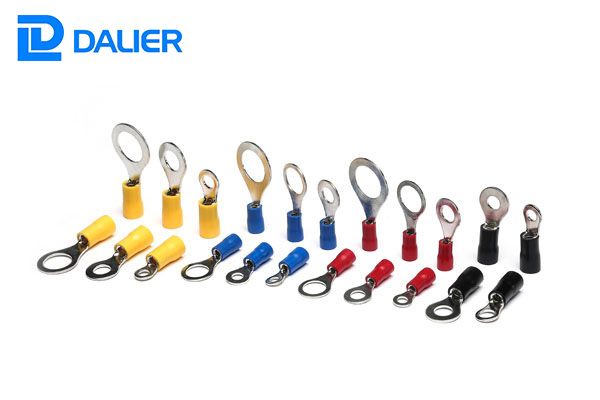

PlusChina Dalier Electrical est spécialisée dans la conception et le développement de cosses à anneau, de cosses à sertir, de cosses à anneau isolées en vinyle avec une excellente expérience dans la fabrication de ces produits.
Paramètres du produit
Taille du câble: 0,5 ~ 1,5 mm² (A.W.G.22-16) Courant max: Imax = 19A Matériel: cuivre violet Épaisseur: 0,7 mm

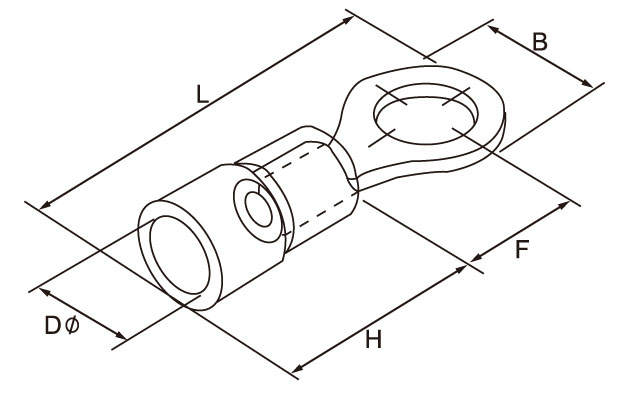

| Item No. | American Bolt number | Screw dia. | Dimension(mm) | Color | ||||
| d2(mm) | B | L | F | H | D | |||
| RV1.25-3 | #4 | 3.2 | 5.7 | 18.7 | 4.95 | 10.6 | 4.3 | Red |
| RVS1.25-3.5 | #6 | 3.7 | 5.7 | 18.7 | 4.95 | |||
| RVM1.25-3.5 | #6 | 3.7 | 6.6 | 19.4 | 6.3 | |||
| RVL1.25-3.5 | #6 | 3.7 | 8 | 21.2 | 7 | |||
| RVS1.25-4 | #8 | 4.3 | 6.6 | 19.4 | 6.3 | |||
| RVL1.25-4 | #8 | 4.3 | 8 | 21.2 | 7 | |||
| RVS1.25-5 | #10 | 5.3 | 8 | 21.2 | 7 | |||
| RVL1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | |||
| RV1.25-6 | 1/4 | 6.4 | 11.6 | 26.8 | 11.1 | |||
| RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.4 | 11.1 | |||
| RV1.25-10 | 3/8 | 10.5 | 13.6 | 27.4 | 13.9 | |||
| RV1.25-12 | 1/2 | 13 | 19.2 | 37.3 | 16.5 | |||
Taille du câble: 1,5 ~ 2,5 mm² (A.W.G.16-14) Courant max: Imax = 27A Matériel: cuivre violet Épaisseur: 0,8 mm
| Item No. | American Bolt number | Screw dia. | Dimension(mm) | Color | ||||
| d2(mm) | B | L | F | H | D | |||
| RV2-3 | #4 | 3.2 | 6.6 | 17.5 | 4.3 | 10.6 | 4.9 | Blue |
| RVS2-3.5 | #6 | 3.7 | 6.6 | 17.5 | 4.3 | |||
| RVM2-3.5 | #6 | 3.7 | 6.6 | 20 | 6.2 | |||
| RVL2-3.5 | #6 | 4.7 | 8.5 | 22.8 | 7.75 | |||
| RVS2-4 | #8 | 4.3 | 6.6 | 20 | 6.2 | |||
| RVL2-4 | #8 | 4.3 | 8.5 | 22.8 | 7.75 | |||
| RVS2-5 | #10 | 5.3 | 8.5 | 22 | 7.75 | |||
| RVL2-5 | #10 | 5.3 | 9.5 | 22.6 | 7.25 | |||
| RV2-6 | 1/4 | 6.4 | 11.9 | 27.2 | 11 | |||
| RV2-8 | 5/16 | 8.4 | 11.9 | 27.2 | 11 | |||
| RV2-10 | 3/8 | 10.5 | 13.6 | 31.1 | 13.9 | |||
| RV2-12 | 1/2 | 13 | 19.2 | 36.8 | 16.5 | |||
Taille du câble: 2,5 ~ 4 mm² (A.W.G.14-12) Courant max: Imax = 37A Matériel: cuivre violet Épaisseur: 1,0 mm
| Item No. | American Bolt number | Screw dia. | Dimension(mm) | Color | ||||
| d2(mm) | B | L | F | H | D | |||
| RV3.5-4 | #8 | 4.3 | 8 | 24.5 | 7.7 | 13.5 | 6.2 | Black |
| RVS3.5-5 | #10 | 5.3 | 8 | 24.5 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3 | 12 | 29 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.4 | 12 | 29 | 7.7 | |||
Taille du câble: 4 ~ 6 mm² (A.W.G.12-10) Courant max: Imax = 48A Matériel: cuivre violet Épaisseur: 1,0 mm
| Item No. | American Bolt number | Screw dia. | Dimension(mm) | Color | ||||
| d2(mm) | B | L | F | H | D | |||
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.8 | 16 | 13.5 | 6.7 | Yellow |
| RVS5.5-4 | #8 | 4.3 | 7.2 | 22 | 5.3 | |||
| RVL5.5-4 | #8 | 4.3 | 9.5 | 26.2 | 8.25 | |||
| RV5.5-5 | #10 | 5.3 | 9.5 | 26.2 | 8.25 | |||
| RVS5.5-6 | 1/4 | 6.4 | 12 | 32.1 | 10.7 | |||
| RVL5.5-6 | 1/4 | 6.4 | 12 | 32.8 | 13 | |||
| RV5.5-8 | 5/16 | 8.4 | 15 | 34 | 13.7 | |||
| RV5.5-10 | 3/8 | 10.5 | 15 | 34 | 13.7 | |||
| RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.8 | 16 | |||
