Twin cord end terminal supplier
Company Profile
YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.
Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.
Our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.
We are producing strictly reference to the technical standard advanced industrial and examined by the national electrical control and distribution equipment quality supervision testing center. It possessing first-class equipment and developing engineers, products are made that use the high purity material. The contacts series are complete, numerous in varieties, that are welcome to many clients for its excellent quality and favorable price!
TEL:+008613757750709
FAx:86-577-62766133
Product Description

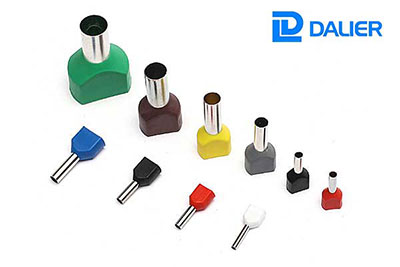

Insulated twin cord end terminal
- Max voltage: 105°C
- Ui=300V
- Material: purple copper
- Insulating material: Nylon

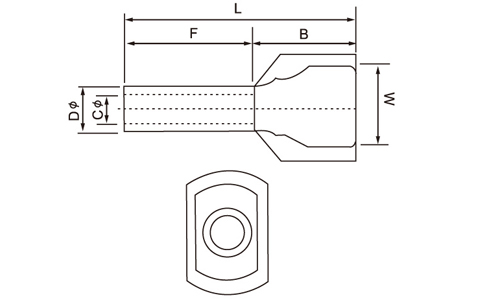

Technical Parameter:
| Item No. | Conductor | Dimension | color of Insulating | ||||||
| (mm²) | F(mm) | L(mm) | W(mm) | B(mm) | D (mm) | C (mm) | German | French | |
| TE0508 | 2×0.5 | 8.0 | 14.0 | 5.0 | 6.0 | 1.8 | 1.5 | White | White |
| TE7508 | 2×0.75 | 8.0 | 14.5 | 5.5 | 6.5 | 2.1 | 1.8 | Blue | Gray |
| TE7510 | 2×0.75 | 10.0 | 16.5 | 5.5 | 6.5 | 2.1 | 1.8 | ||
| TE1008 | 2×1.0 | 8.0 | 14.9 | 5.5 | 6.9 | 2.3 | 2.0 | Red | Red |
| TE1010 | 2×1.0 | 10.0 | 16.9 | 5.5 | 6.9 | 2.3 | 2.0 | ||
| TE1508 | 2×1.5 | 8.0 | 16.7 | 6.7 | 8.7 | 2.6 | 2.3 | Black | Blue |
| TE1512 | 2×1.5 | 12.0 | 20.7 | 6.7 | 8.7 | 2.6 | 2.3 | ||
| TE2510 | 2×2.5 | 10.0 | 19.8 | 8.0 | 9.8 | 3.3 | 2.9 | Gray | Blue |
| TE2513 | 2×2.5 | 13.0 | 22.8 | 8.0 | 9.8 | 3.3 | 2.9 | ||
| TE4012 | 2×4.0 | 12.0 | 21.2 | 8.8 | 9.2 | 4.2 | 3.8 | Orange | Gray |
| TE6014 | 2×6.0 | 14.0 | 23.5 | 9.5 | 9.5 | 5.3 | 4.9 | Green | Yellow |
| TE10-14 | 2×10.0 | 14.0 | 26.5 | 12.6 | 12.5 | 6.9 | 6.5 | Brown | Red |
| TE16-14 | 2×16.0 | 14.0 | 30.0 | 19.0 | 16.0 | 8.7 | 8.3 | Ivory | Blue |
Outline:
AWG (American Wire Gauge) terminal and connector suit for American market and area that use such standard, for example: USA,CANADA,MEXICO,COLOMBIA,KINGDOM OF SAUDI,THAILAND,PHILIPPINES etc.
Technical Parameter:
| TYPE | DESCRIPTION |

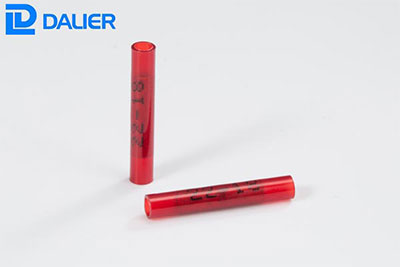

| 28130N | 22-18 Red nylon insulated butt splices |
| 28330N | 16-14 Blue，nylon insulated butt splices |
| 28430N | 12-10 Yellow，nylon insulated butt splices |
