Butt splice terminal manufacturer

Heure de publication: Auteur: Editeur du site Visite: 979

Company Profile

YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.

TEL:+008613757750709

FAx:86-577-62766133



Product Description

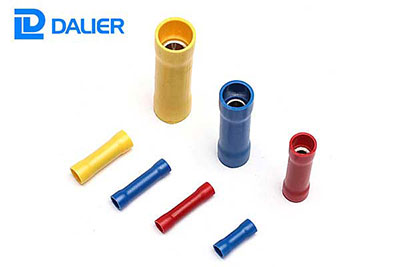

Butt splice terminal

Butt splice terminal manufacturer_Butt splice terminal

Material: purple copper

Insulating material: PVC

Technical Specification:

Item No. Cable size   Dimension     Imax
  A.W.G mm² I(mm) d (mm) L(mm)
BV1.25 22-16 0.5-1.5 15 1.7 25 19A
BV2 16-14 1.5-2.5 15 2.3 25 27A
BV5.5 12-10 4-6 15 3.4 25 48A
BV8 #8 6-10 21 4.5 32 62A
BV14 #6 10-16 26 5.8 42 88A
BV22 #4 16-25 29 7.7 50 115A
BV38 #2 35-50 32 9.4 55 160A

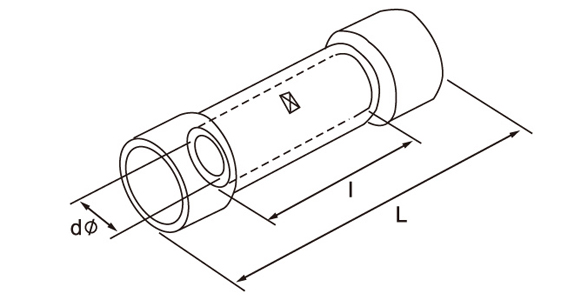

Outline:

Butt splice terminal manufacturer_Butt splice terminal drawing

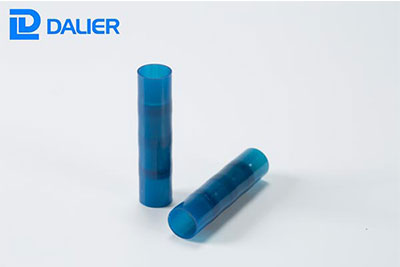

Step Down Nylon Butt Splice

Butt splice terminal manufacturer_Step Down Nylon Butt Splice

AWG (American Wire Gauge) terminal and connector suit for American market and area that use such standard, for example: USA,CANADA,MEXICO,COLOMBIA,KINGDOM OF SAUDI,THAILAND,PHILIPPINES etc.

Technical Specification:

TYPE DESCRIPTION
1.5-2.5N 22-18 to 16-14 Ga Step Down Nylon Butt Splice
2.5-5.5N 16-14 to 12-10 Ga Step Down Nylon Butt Splice
8-14N 8 to 6 Ga Step Down Nylon Butt Splice
