The copper terminal can be subdivided into 34 specific different models. This type of copper terminal is ...
PlusChina Dalier Electrical est spécialisée dans la conception et le développement de cosses de tube en cuivre (SC), de cosses de câble de batterie, de cosses d'extrémité de câble de batterie
Paramètres du produit
LUG DE TUBE EN CUIVRE (SC)

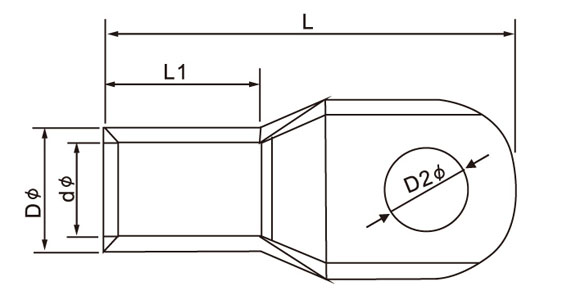

| ITEM NO. | D2φ(mm) | Dimensions(mm) | Conductor section(mm²) | |||
| dφ | DΦ | L1 | L | |||
| SC1.5-5 | 5.3 | 1.9 | 3.35 | 6.5 | 18.0 | 1.5 |
| SC2.5-4 | 4.3 | 2.6 | 4.0 | 7.0 | 18.0 | 2.5 |
| SC2.5-5 | 5.3 | 2.6 | 4.0 | 7.0 | 20.0 | 2.5 |
| SC4-5 | 5.3 | 3.2 | 4.8 | 7.5 | 20.5 | 4 |
| SC4-6 | 6.4 | 3.2 | 4.8 | 7.5 | 22.0 | 4 |
| SC6-5 | 5.3 | 4.1 | 5.5 | 9.0 | 23.0 | 6 |
| SC6-6 | 6.4 | 4.1 | 5.5 | 9.0 | 23.0 | 6 |
| SC10-6 | 6.4 | 5.1 | 6.5 | 9.5 | 25.0 | 10 |
| SC10-8 | 8.4 | 5.1 | 6.5 | 9.5 | 27.0 | 10 |
| SC16-6 | 6.4 | 6.4 | 8.0 | 12.2 | 30.7 | 16 |
| SC16-8 | 8.4 | 6.4 | 8.0 | 12.2 | 30.7 | 16 |
| SC25-6 | 6.4 | 7.4 | 9.0 | 13.3 | 34.0 | 25 |
| SC25-8 | 8.4 | 7.4 | 9.0 | 13.3 | 34.0 | 25 |
| SC35-8 | 8.4 | 8.5 | 10.5 | 14.5 | 38.0 | 35 |
| SC35-10 | 10.5 | 8.5 | 10.5 | 14.5 | 38.0 | 35 |
| SC50-8 | 8.4 | 9.6 | 12.0 | 16.5 | 42.5 | 50 |
| SC50-10 | 10.5 | 9.6 | 12.0 | 16.5 | 42.5 | 50 |
| SC70-10 | 10.5 | 11.9 | 14.5 | 19.0 | 50.0 | 70 |
| SC70-12 | 13 | 11.9 | 14.5 | 19.0 | 50.0 | 70 |
| SC95-10 | 10.5 | 13.2 | 16.0 | 20.3 | 56.5 | 95 |
| SC95-12 | 13 | 13.2 | 16.0 | 20.3 | 56.5 | 95 |
| SC120-12 | 13 | 15.6 | 19.0 | 24.5 | 64.0 | 120 |
| SC120-16 | 17 | 15.6 | 19.0 | 24.5 | 64.0 | 120 |
| SC150-12 | 13 | 17.4 | 21.0 | 29.0 | 69.0 | 150 |
| SC150-16 | 17 | 17.4 | 21.0 | 29.0 | 69.0 | 150 |
| SC185-12 | 13 | 19 | 23.0 | 32.0 | 72.0 | 185 |
| SC185-16 | 17 | 19 | 23.0 | 32.0 | 72.0 | 185 |
| SC240-16 | 17 | 21.8 | 26.0 | 38.0 | 92.0 | 240 |
| SC240-20 | 21 | 21.8 | 26.0 | 38.0 | 92.0 | 240 |
| SC300-16 | 17 | 24.8 | 30.0 | 43.0 | 101.0 | 300 |
| SC300-20 | 21 | 24.8 | 30.0 | 43.0 | 101.0 | 300 |
| SC400-16 | 17 | 28 | 34.0 | 46.0 | 110.0 | 400 |
| SC400-20 | 21 | 28 | 34.0 | 46.0 | 110.0 | 400 |
| SC500-16 | 17 | 30 | 38.0 | 47.0 | 119.0 | 500 |
| SC500-20 | 21 | 30 | 38.0 | 47.0 | 119.0 | 500 |
| SC630-20 | 21 | 35 | 45.0 | 56.0 | 135.0 | 630 |
| SC800-22 | 39 | 50.0 | 60.0 | 170.0 | 800 | |
| SC1000-22 | 44 | 56.0 | 87.0 | 200.0 | 1000 | |
Cosse de tube en cuivre (SC) Cosse de câble
